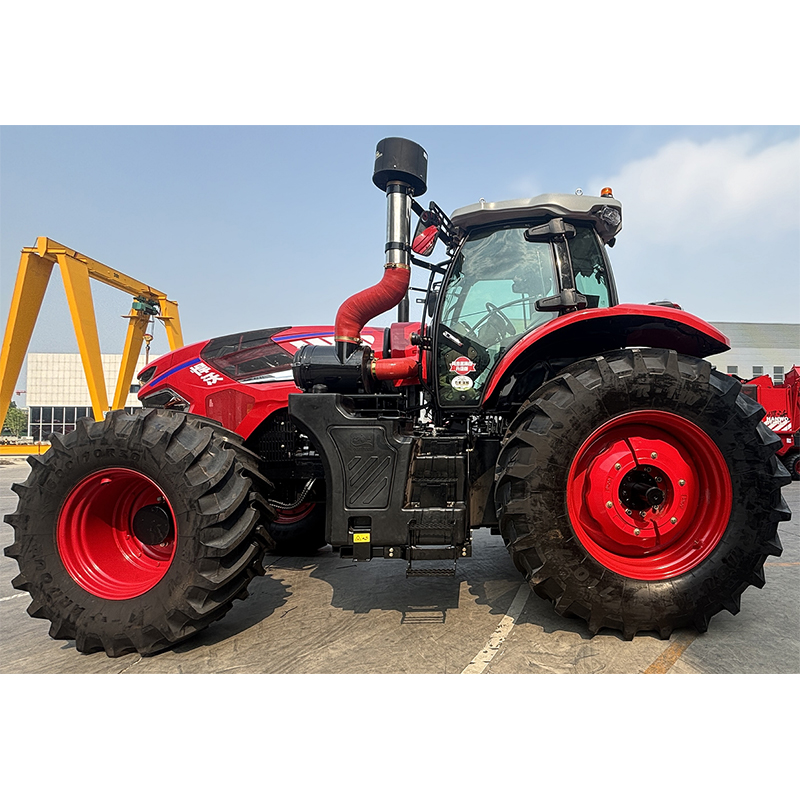

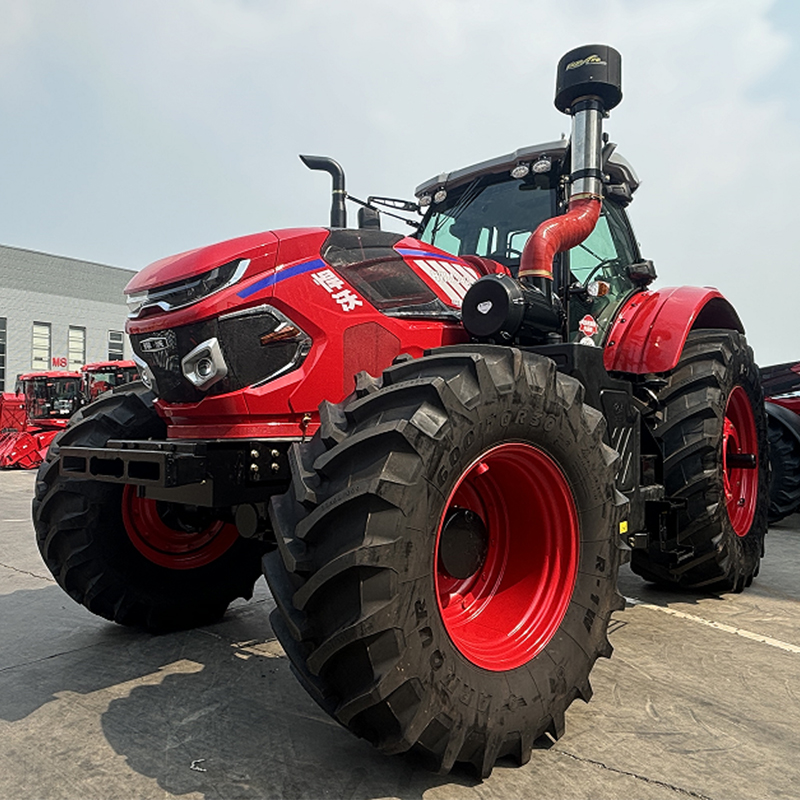

All purpose medium tractor

Features

• The clutch is 16.5 inches larger, equipped with the British LUK double reinforced clutch, which has strong torque transmission capacity, stable quality, high reliability and long life.

• The use of gas-assisted clutch control, pneumatic power cylinder output large thrust, output large torque, rapid response, easy to control, fast heat dissipation, long service life, easy maintenance and replacement of parts, greatly reduce pedal force.

• Using large volume fuel tank, one refueling amount can reach 700L fuel and 35L urea, one refueling oil can ensure more than 16 hours of continuous operation.

• Equipped with Italy Carraro front axle, reasonable structure, high strength, effectively improve the durability and stability of the whole machine.The large carrying capacity makes the tractor suitable for various agricultural work and industrial transportation. It has high reliability.Achieve low fuel consumption in operation and save oil cost.

• a three-point hitch with electronic control is adopted to improve work efficiency, reduce labor intensity, ensure the stability of agricultural production, and improve the quality and output of agricultural products.The machine has the function of hydraulic automatic turnover, easy to operate and flexible.

• 9DF engine adopts advanced combustion technology and injection system to improve fuel utilization, high efficiency and energy saving.The power and torque reserve coefficient of the tractor are increased, and the power and torque output are large, which improves the ability of the tractor to handle the complex and harsh working environment.

• Transmission gear and speed design is reasonable, the tractor is equipped with 24+12 synchronizer shuttle shift, easy operation, gear and speed distribution is reasonable, to meet the needs of a variety of operations and driving speed 600/70R30, 710/70R42

• The automatic assisted driving of the tractor can easily achieve autonomous and accurate operation, and the application of high-precision positioning system improves the operation efficiency and land utilization, while saving seeds, fertilizers and pesticides, and the operator's operation intensity is also greatly reduced.

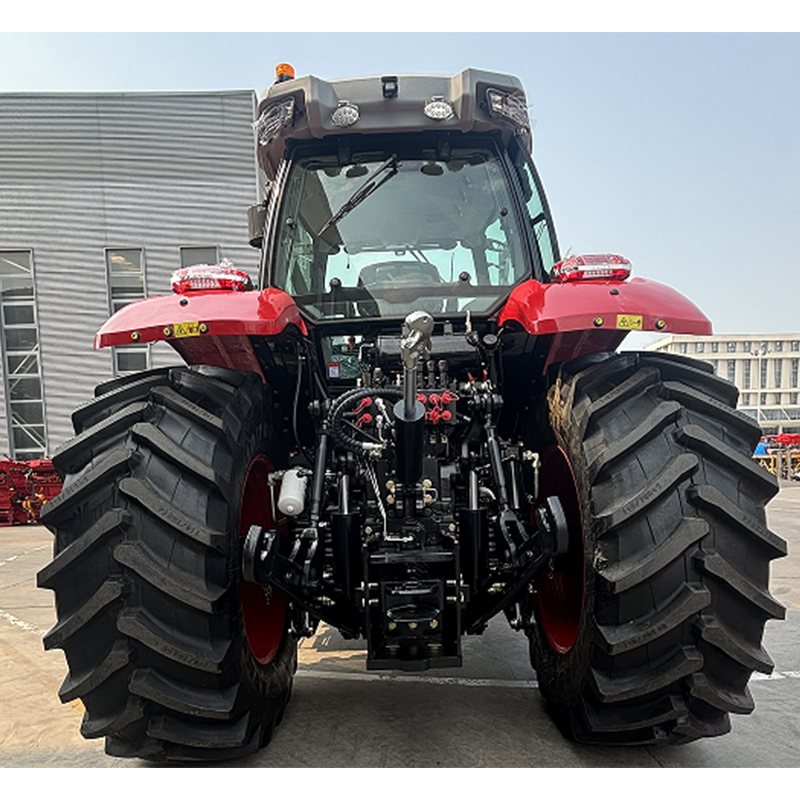

• Adopted tractor three-point hitch and fast connector in line with international standard [ISO703-1-1997],[ISO11001-3-1993], [ISO11001-4-2022], Achieve the unification of HANWO tractor and global implementation standards, ensure the connection between tractors and impiement is safe and reliable, and improve agricultural production efficiency.

• SUNBUN high flow variable pumps usually have high efficiency and can reduce energy loss, thus reducing fuel consumption and emissions of tractors.The variable pump can adjust the flow and pressure according to the actual working needs, so that the tractor can adapt to different working conditions and tasks.With SUNBUN pumps can improve the accuracy of tractor operations, such as more accurate dose control in sowing, fertilization and other operations.

• Equipped with hydraulic cylinder accumulator,When carrying a heavy implement over a ridge, or across a ditch, or when flipping the plow over the field in reverseAbsorb pulse pressure and soften impact force,Protect tractors and implements from violent shocks,Play a role in protecting the tractor and implement.

• The tractor uses a plate-fin radiator that increases the gap between the tubes, and the heat exchange area is large due to the large number of built-in heat dissipation tubes. The tubes adopt a high-temperature forming process, with large diameter, thick tube wall, pressure resistance, vibration resistance, and good heat dissipation effect.
